EBDR: Rectangular w/ Position Indication

$1.00

Submittal Form
SKU: EBDR Category: Tags: , ,

The Young Regulator EBD is an Electronic Balancing Damper actuated by a 12V DC motor. Dampers above a hard ceiling or in any inaccessible location can be controlled with the EBDP – Electronic Balancing Damper Positioner, which opens and closes the damper and provides a visual indication of the damper position with an LCD meter.
Downlaod Spec Sheet

Description

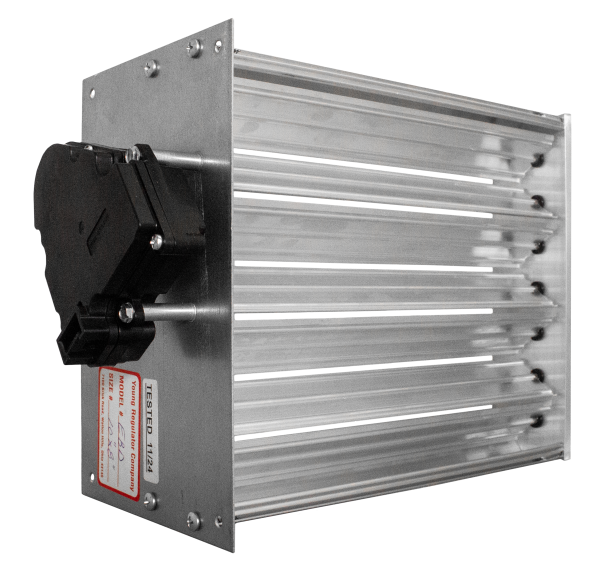

The Young Regulator EBDR is an opposed blade rectangular Electronic Balancing Damper. Dampers above a hard ceiling or in any inaccessible location can be controlled with the EBDP – Electronic Balancing Damper Positioner, which opens and closes the damper and provides a visual indication of the damper position with an LCD meter.

The Positioner can be used to control any number of dampers that are at a worksite through a variety of receptacles that are offered. The Positioner is self-contained and small enough to be carried in a pocket. A high capacity battery is featured for long life and is easily replaced in the field when necessary.

The EBDR is ideal in a number of applications:

  • Labs, where more precise balancing or control may be required
  • Schools, prisons, and mental health facilities, where access to controls is restricted
  • Atriums, where dampers are inaccessible and long cable runs are required
  • Any situation where seasonal changes require rebalancing of the HVAC system

An EBDR, Electronic Balancing Damper that includes the 12V DC motor, an EBDC Cable up to 1,000’ in length, and a termination are required for a complete assembly. Field connection between 12V DC motor and termination is fast and simple with snap on connectors installed by the factory. One EBDP Positioner is required per job.

Accessories
REQUIREDTERMINATION OPTIONS
EBDP-Positioner
One per Order Minimum
EBD 301 Concealed
Ceiling Termination
EBDC
– Plenum Rated Cable One Per Damper
EBD 302 Concealed Wall
Termination
EBD-Wall (1, 2, 4, 6, 12 Ports)
OTHER
Spare BatteriesRectangular Dampers, Model EBDR
Low Leak SealsTake Off EBD-5050
OPTIONS
Available without
position indication (DCD)

Resources

Additional information

Frame

.050 Aluminum Extrusion with Reinforcing Channels

Blade

.050 Aluminum Extrusion with Reinforcing Channels

Mounting Plate

5" Wide x Damper Height, Extended Plate Available

Slide

Stainless Steel

Size Information

Undersized = 3/16” high x wide

Frame Width

2 1/8" Wide

Blade Width

1.438" – Contained Within Frame

Max Size

24" x 24" Side Controlled

Min Size

4" x 3"

Volts

Watts

Amp

Timing

Torque
