DA-CO2-3045: Rectangular Fresh-Air Intake

Product Submittal
Category:

Description

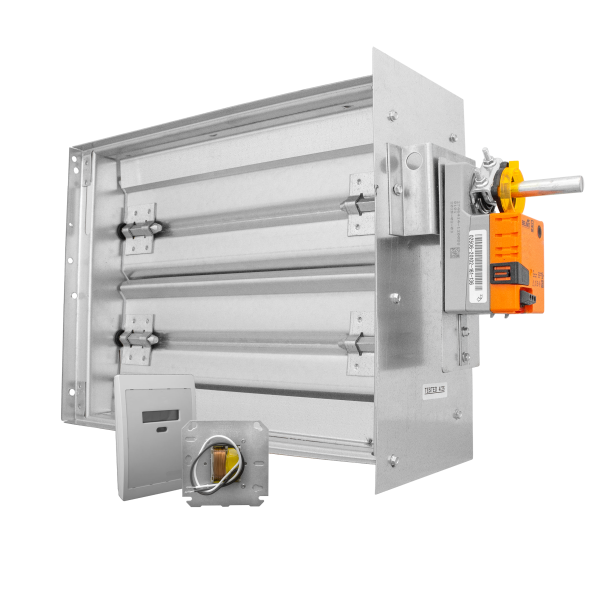

The Demand-Air™ Kit (DA-CO2-XX) is the simple answer to Demand Response Ventilation. The Carbon Dioxide Sensor monitors concentrations in the space and causes the damper motor to modulate open or closed as required to maintain a healthful indoor environment while reducing operating cost. The Damper is available in a variety of different sizes. The kit features a high- quality Belimo brushless DC motor. To preclude over-ventilation, the damper begins to open at 800ppm and is full open by 1200ppm. 24VAC Transformer included.

Additional information

Frame (3" Wide)

16. ga

Blade

16 ga.

Shaft

1/2" Plated Steel

Blade Bushing

Oil Impregnated Bronze

Size Information

Damper 3/16" Undersized High & Wide

Min. Size

6" x 6"

Max Size

48" x 48"

Supply Voltage

24VAC ± 20%

Power Consumption

< 1 Watt (average)

Output Signal

0-10 VDC

Sensor Dimensions

5.12”(h) x 3.35” (w) x 1.18” (d)

Sensor Coverage Area

7,500 sq. ft. (max)

Calibration Lifecycle

15 years

Sensing Technology

Single Beam Infrared (NDIR)

Volts

24V

Watts

1.5

VA

3

Noise

<35 dB (A)

Timing

95 Seconds Constant

Torque

45 in. lbs
