9100-IF: VAV Diffuser

Submittal Sheet
Category:

Description

The 9100-IF is part of Young Regulator’s “Simple Zone” Product line.  The goal is to make Stand-Alone airflow zoning easier than ever.

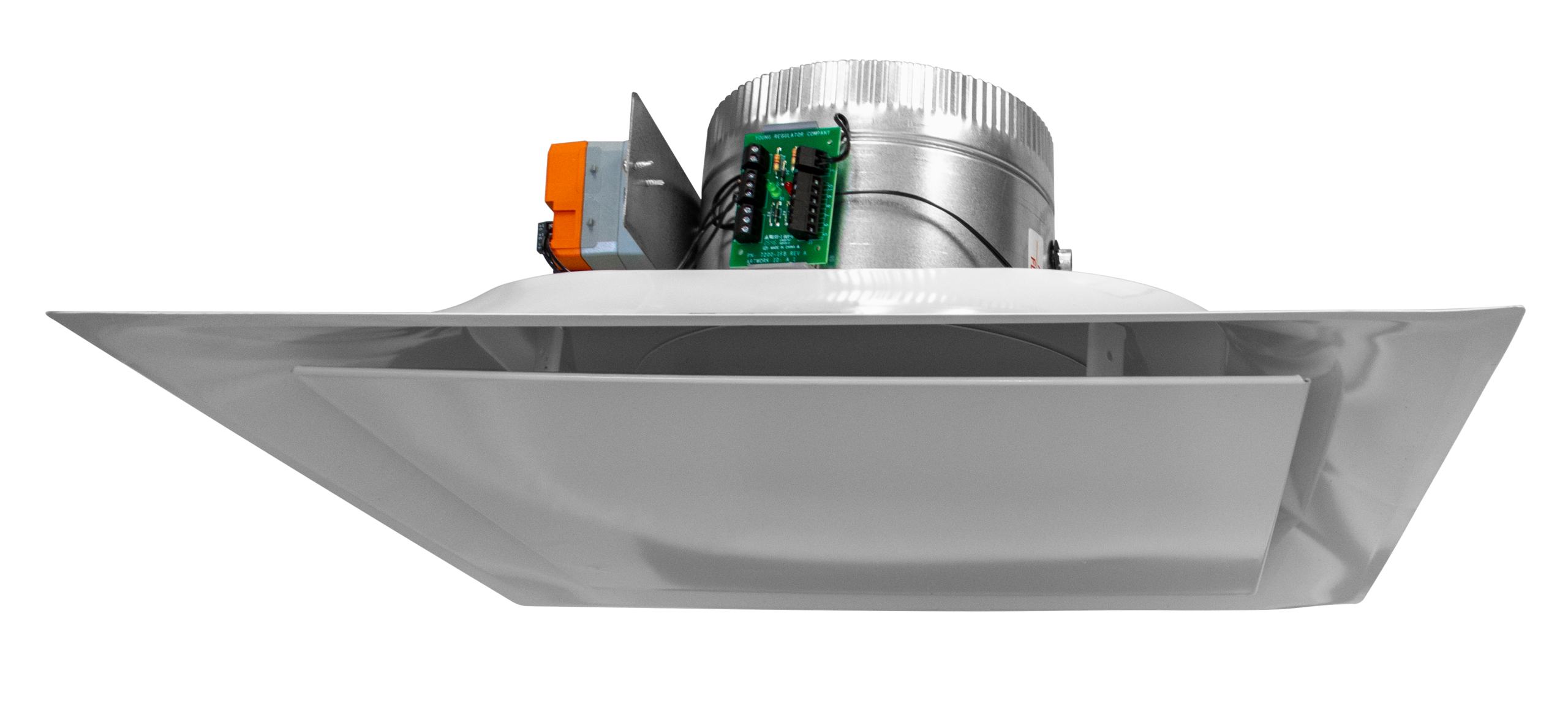

The 9100 is a plaque-style diffuser.  It has been designed to maintain the coanda effect, discharging air along the ceiling for predictable, even comfort.

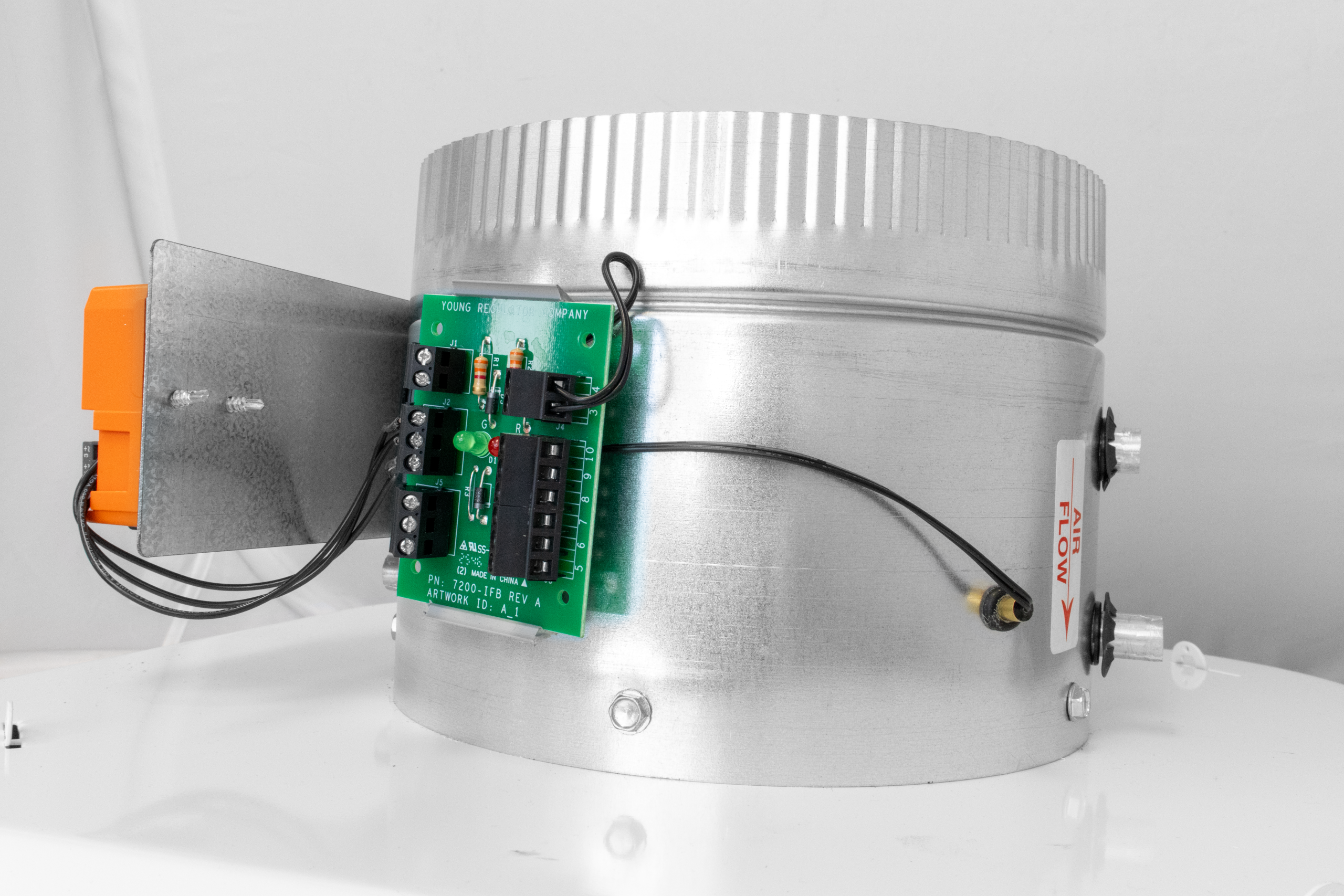

We have added an interface board to make wiring simple and handle the modulation and auto-chageover.

Additional information

Back Cone

Unitary stamped seamless construction with 4-way discharge pattern

Face Plate

Removable Plaque Style

Finish

Baked Enamel

Size

24” x 24”
6” Neck through 14” Neck – Nominal – 1/4”
12” x 12”
6” and 8” Neck – Nominal – 1/4”

Frame

Surface mount Standard, Lay-in frame Optional

Thermostat (T-720A)

Proportional; Modulation and Supply Air Sensor for automatic changeover

Drone

Use 9100E Up to 8 units on one thermostat
