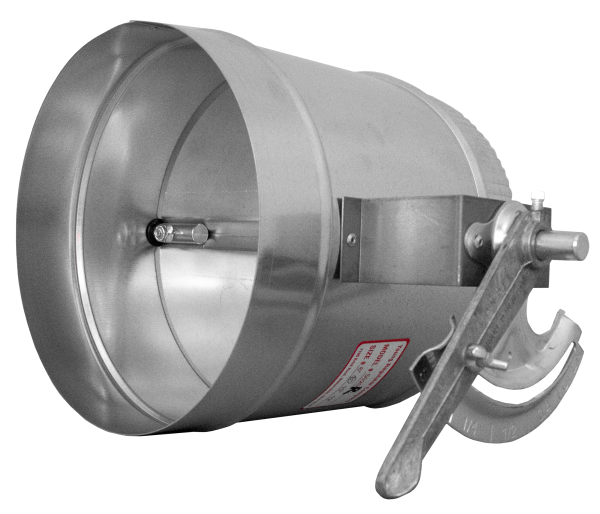

5020R: Balancing Damper w/ Locking Quadrant

$1.00

Submittal Form

Description

The Young Regulator 5020R is a round damper with a commercial quality locking hand quadrant that provides efficient air flow control in conventional air handling systems. It is designed for medium velocity and differential pressure applications up to 2″ W.C., with a maximum approach velocity of 2,000 feet per minute.

Resources

Additional information

Options

1" Standoff (443), 2"Standoff (443B), 3" Standoff (443-3), Low Leak EPDM Seals, Stainless Steel Construction, Aluminum Construction, Many Motor Options

Size Information

One end straight, one end crimped. Rolled stiffening beads., Diameters greater than 14" will be constructed with a spiral shell.

Shell

12" – 24" – 20 ga. Galvanized Steel, 4" – 10" – 24 ga. Galvanized Steel

Blade

20 ga. Galvanized Steel

Shaft

1/2" Zinc Plated Steel

Bushing

Synthetic

Diameter

4" – 20"

Shell Length

8"
