270-301-EZ: Ceiling Bracket & Cover Plate

Submittal FormBowden Installation InstructionsInstallation Instructions
SKU: 270-301-EZ Category: Tags: , , , , , ,

Description

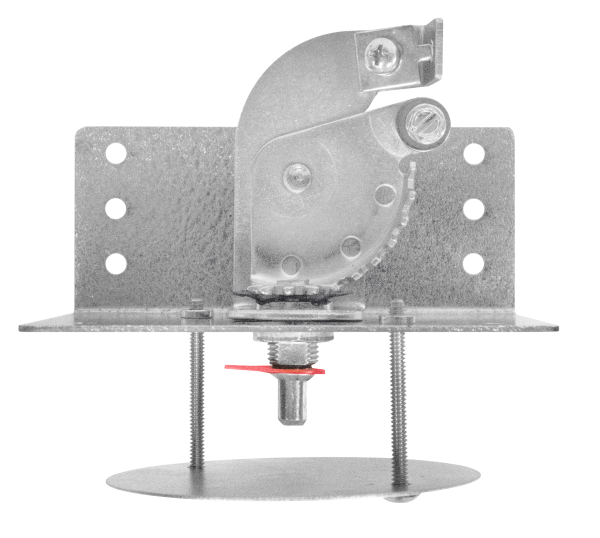

The 270-301-EZ consists of the 270 rack and pinion controller mounted atop a right angle bracket that is fastened to a stud above a sheetrock or gypsum board ceiling. A 2 1/4” hole is cut in the sheetrock for access to the controller and is covered with a 3” cover plate that is secured by two 6-32 x 5/8” stainless steel machine screws that are removed for damper adjustment.

Additional information

Rack and Pinion

14 ga. Galvanized Steel

Cover Plate Diameter

3"

Cover Plate Options

Zinc (Standard), Primer Coated, Stainless Steel, Chrome, Tamper Proof Screws
